Silhouette Tutorial: How to Cut and Apply Vinyl

I am overwhelmed by the response to the Silhouette tutorials. You guys are so sweet. Thank you for all your kind emails and comments!

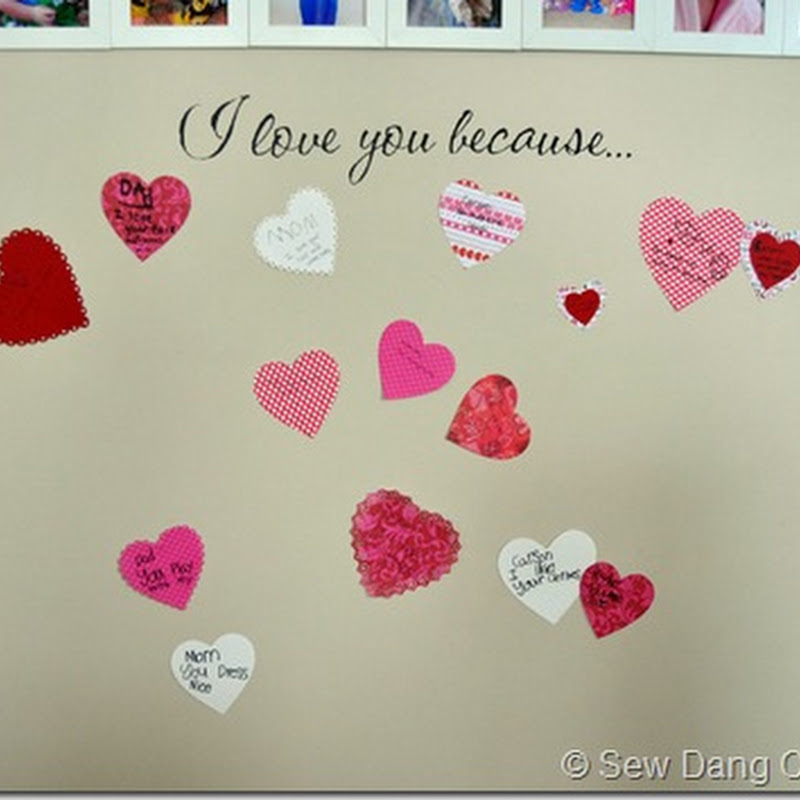

One of the requests I’ve had from many of you is a tutorial on vinyl, so that’s what we are going to learn today. If you saw my “I love you because…” wall last week, then you’ve seen the vinyl I’m going to be making.
I-Love-you-wall
STEP ONE: Open up Silhouette and let’s get our page set up.

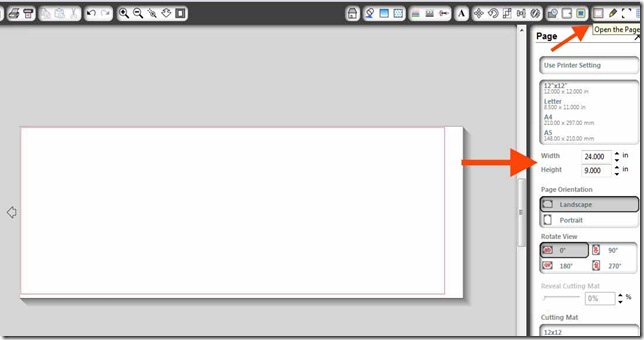

Click on the “Page settings” button in the top right hand of the toolbar. It’s the red and black rectangles one. My roll of vinyl is only 9” wide, so I need to change the height of my page to 9”. Then I want my quote to be about 2 feet long, so I’m going to change the width of my page to 24”.
Page settings
Just so you know, the CAMEO can cut up to 12” wide and 10 feet long!

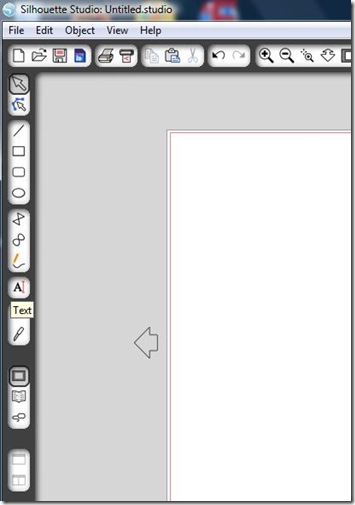

STEP TWO: Click on the text tool, located on the left toolbar (it’s the one that is a letter “A”).
Text button

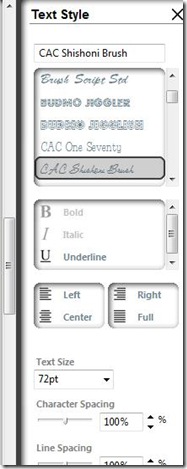

You should see a text style settings on the right side of your screen. Choose which font you want. I selected CAC Shishoni Brush.
Text style

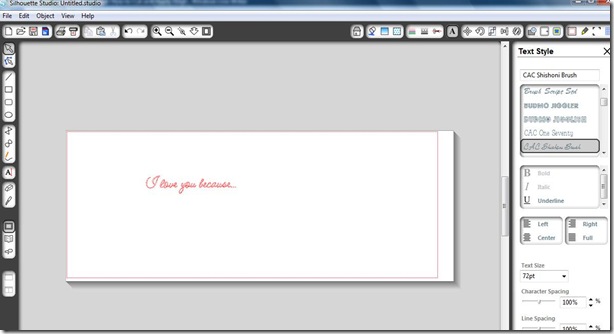

Then go ahead and type.
Type

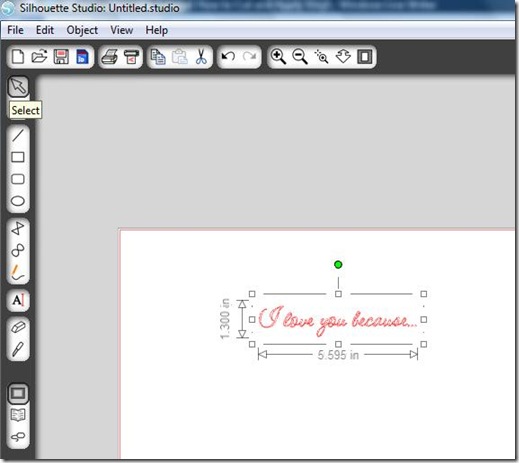

Obviously that is not 24” long, so I need to resize it. Click on the Select tool (arrow at the top of the left toolbar). Now you should be able to see a box with some drag points around your words.
Select tool

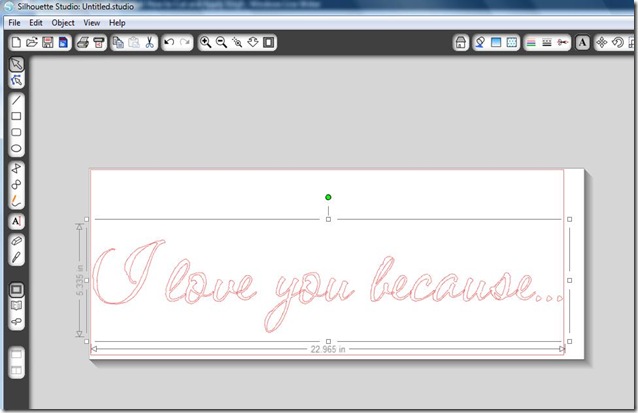

Notice right now it is only 5.595 inches long. I’m going to click and drag on one of the corner boxes until my words are about 24” long. I don’t need it exact, so 22.965 is just fine for me. If you do need it exactly 24”, adjust your page width higher (refer to STEP ONE) so you can drag your words a little more to make them bigger.
23 inches long
You can now move it around to wherever you want on the page, then you are set to cut.

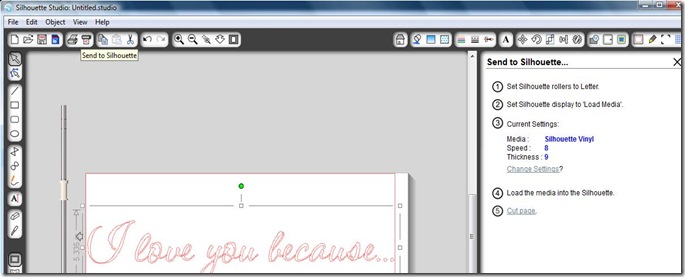

STEP THREE: Send to Silhouette. Click on the button just to the right of the print button that looks like a printer with a paper with a red letter “A” on it.
Send to Silhouette

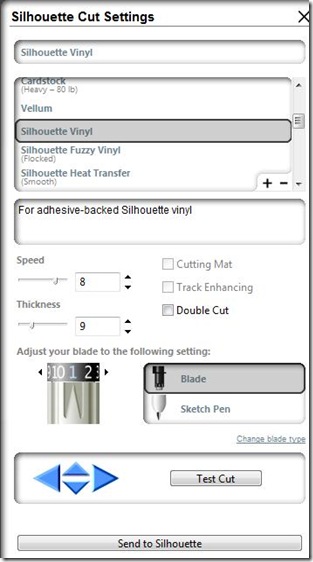

My settings are already set up for vinyl, but if they weren’t I would click on “Change Settings” and be brought to here.
Cut settings
Choose your media (in this case it’s Silhouette Vinyl).

Note: It says to set my blade to “1”. I have found that every machine is slightly different, so the best way to figure out if that’s the right setting for your machine is to do a TEST CUT. If you click on that, it will just do a little cut at the top of whatever you are cutting (page, vinyl, whatever). For my machine, the “1” mostly cuts all the way through, but I would run into a few snags where it hadn’t. So for vinyl, I set my blade to “2” and I haven’t had a problem since.

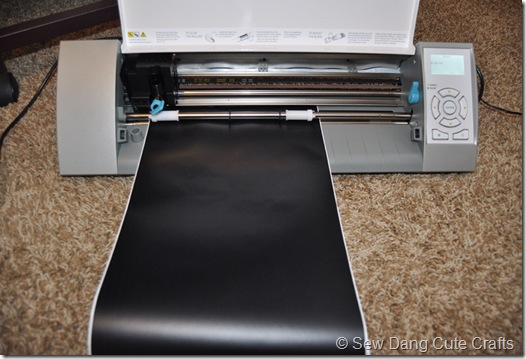

Once you have your cut settings where they need to be, click on “Send to Silhouette”. Make sure your Silhouette is turned on and hooked up to your computer and it will have you load your media.
Load-media

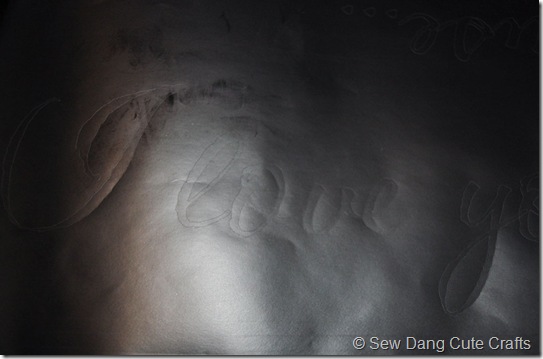

With vinyl you do not need the cutting mat. Once it’s loaded, you will click on “Cut Page”. Then sit back and let the Silhouette work it’s magic. Unload the media and you will have something like this.
Cut-out-vinyl

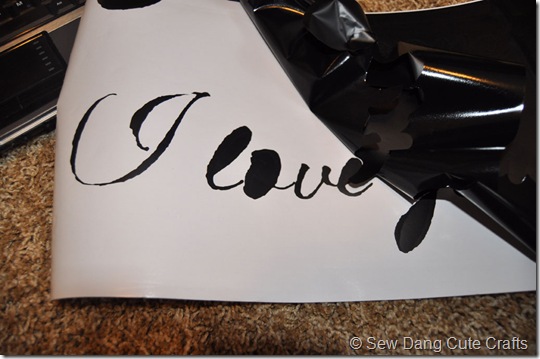

Peel away the vinyl you don’t need. You might need to use an Xacto knife or something similar to get the parts inside letters like “e” and “o”.
Peel-unwanted-vinyl

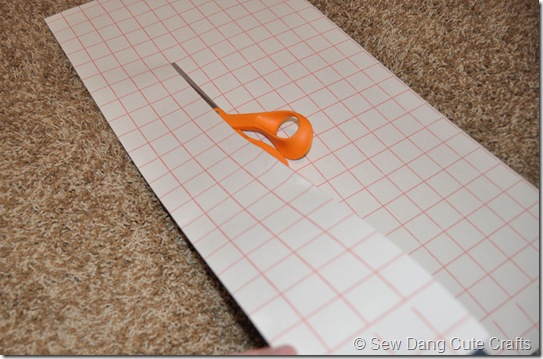

Cut a piece of transfer tape that will cover your vinyl.
Cut-transfer-tape

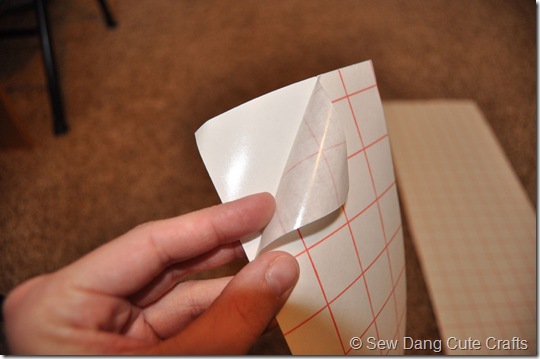

Peel away the transfer tape from it’s backing.
Peel-transfer-tape

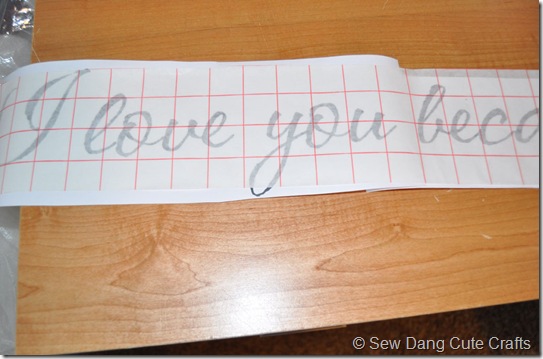

Apply the transfer tape to your vinyl piece. Smooth it out and make sure it’s on really well. I like to rub a popsicle stick or credit card over it to make sure the vinyl is really stuck to it.
Transfer-tape-on-vinyl

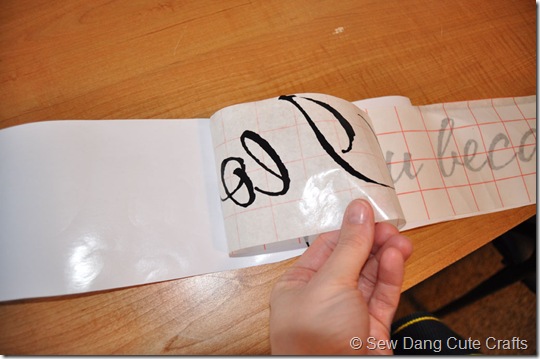

Peel away the transfer tape with the vinyl now on it.
Vinyl-on-transfer-tape

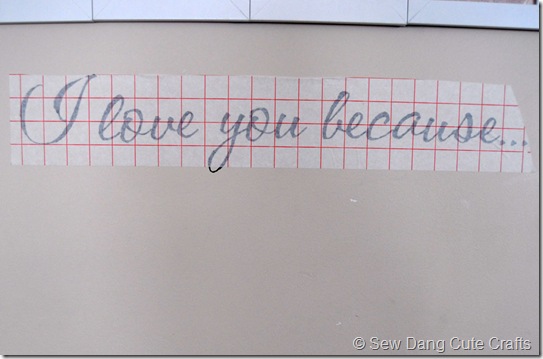

Then stick your vinyl where you want it. This is where I use the popsicle stick or credit card again to make sure the vinyl sticks to the wall.
Vinyl-on-wall

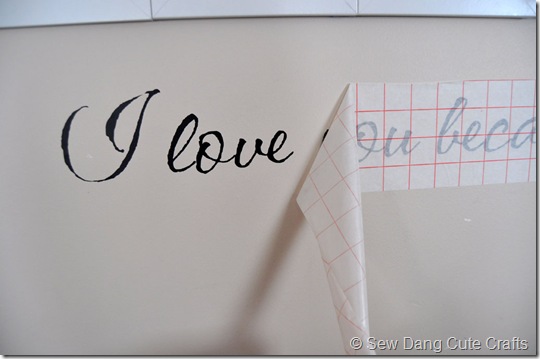

Peel away the transfer tape.
Peel-end-transfer-tape

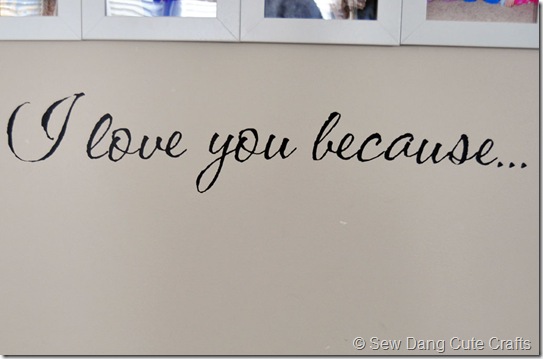

And you are now done!
Vinyl-applied
Let me know if you have any questions and also if you have any other requests for Silhouette tutorials!
Thanks and have a great day!

Tam
